Product category / Smart Home NTC Temperature Sensor
Stainless Steel Straight Tube NTC Assembly Thermistor for Water Purifiers
This NTC assembly thermistor belongs to TS series. It can be supplied with various NTC thermistor to suit your application. The probe is made of 304 stainless steel. They are widely used in smart home or other applications due to the high stability and wide operating temp range: -40°C/+105°C.
- Tel +86 13679565096
- Email sak@exsense.net/ saa@exsense.net
Product feature
Product characteristics
Product application
Product Drawing
Product feature
- Accurate Temperature Detection
- High Sensitivity
- Good Consistency and Interchangeability
- Excellent Insulation and Fast Response
- Long-Term Stable Operation (Annual Resistance Drift ≤ 1%)
Product characteristics
- Rapid response time, high reliability, stability
- Rated power： ≤15mW
- Thermal time constant:≤ 1 seconds
- Dissipation factor：3mW/C(in still air)
Product application
- Water Purifier Temperature Monitoring
- Grilling Food
- Rice Cookers and Ovens
- Water Heaters, Heaters, and Refrigerators
- Water Dispensers and Disinfection Cabinets
NTC assembly thermistor is widely used in smart home appliance, it is with small size, fast thermal time constant and easy to install/ replace. EXSENSE is a professional supplier of NTC products, we supply all kinds of high quality NTC thermistor assembly, NTC probe sensors.

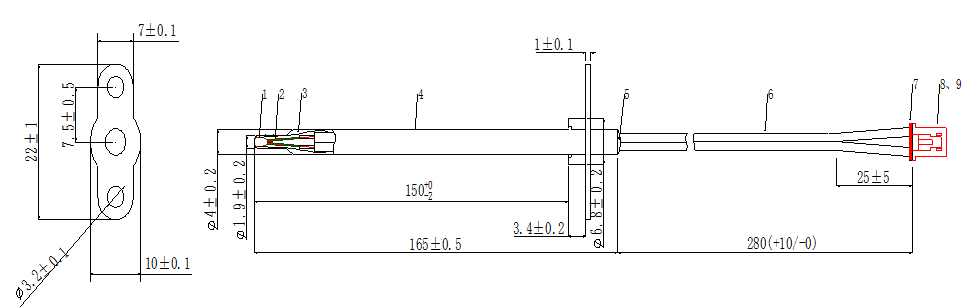

Product Drawing
- Product Model： TS104F25C3950FA-ML280A
- Wire : AWG26, AWG24 ,AWG 22 or Other
- Thermistor’s resistance value: R25=100K2+1%,B(25150)=3950K+1% or different NTC R-T curve available
- Operating temperature range: -40℃ to 105℃
- All the materials comply with the RoHS requirement
| TS | 502 |
|
F | 25C | 3990 | F | A | _ | M | L220 | A | |||||||
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ | ⑩ |
| ① | ② | ③ | ④ | ⑤ | ⑥ | |||||||||||
| Product Series Code | Resistance @25℃ | R25
Tolerance |
Test Temp. of Resistance | B-value | B-value Tolerance | |||||||||||
| TS | TS Series
Temperature sensor |
502 | 5KΩ | F | ±1% | 25C | 25℃ | 3990 | B=3990K | F | ±1% | |||||
| ⑦ | ⑧ | ⑨ | ⑩ | |||||||||
| Test Temp. of B-value | Housing Material | Length | Distinguishing Code | |||||||||
| A | 25/50℃ | M | Metal | L220 | 220mm | A | Internal code | |||||
| Part No. | R25℃
(KΩ) |
B(K) | Rated power
@25℃ (mW) |
Dissipation factor(δ)
(mW/℃) |
Thermal time
constant (s) |
| 202F3600A | 2 | 3600 | 10-20 | 2-4 | 3-10 |
| 502F3470A | 5 | 3470 | |||
| 103F3435B | 10 | 3435 | |||
| 303F3936A | 30 | 3936 | |||
| 104F3950A | 100 | 3950 |
