Product category / Smart Home NTC Temperature Sensor
NTC thermistor sensor for Food Probe NTC Temperature Sensor
This NTC thermistor sensor belongs to TS series. It can be supplied with various NTC thermistor to suit your application. The probe is made of 304 stainless steel. They are widely used in smart home or other applications due to the high stability and wide operating temp range: -30°C/+250°C.
EXSENSE
- Tel +86 15813344362
- Email sak@exsense.net/ saa@exsense.net
Product feature
Product characteristics
Product application
Product Drawing
Product feature
-
Accurate Temperature Detection
-
High Sensitivity
-
Good Consistency and Interchangeability
-
Excellent Insulation and Fast Response
-
Long-Term Stability (Annual Resistance Drift ≤ 1%)
Product characteristics
- Thermal Response Time: ≤16 seconds (in a water bath).
- Dissipation Factor: Approximately 2.6 mW/°C (in still air).
- Voltage Withstand Test: AC 1000V, 2 mA 3 seconds.
- Insulation Resistance: ≥100 MΩ DC 500V.
- Rated Power: ≤10 mW.
Product application
-
Food Temperature Monitoring
-
Grilling Food
-
Rice Cookers, Ovens
-
Water Heaters, Heaters, Freezers
- Water Dispensers, Disinfection Cabinets
NTC thermistor sensor is widely used in smart home appliance, it is with small size, fast thermal time constant and easy to install/ replace. EXSENSE is a professional supplier of NTC products, we supply all kinds of high quality NTC thermistor sensor, NTC Temperature Sensor

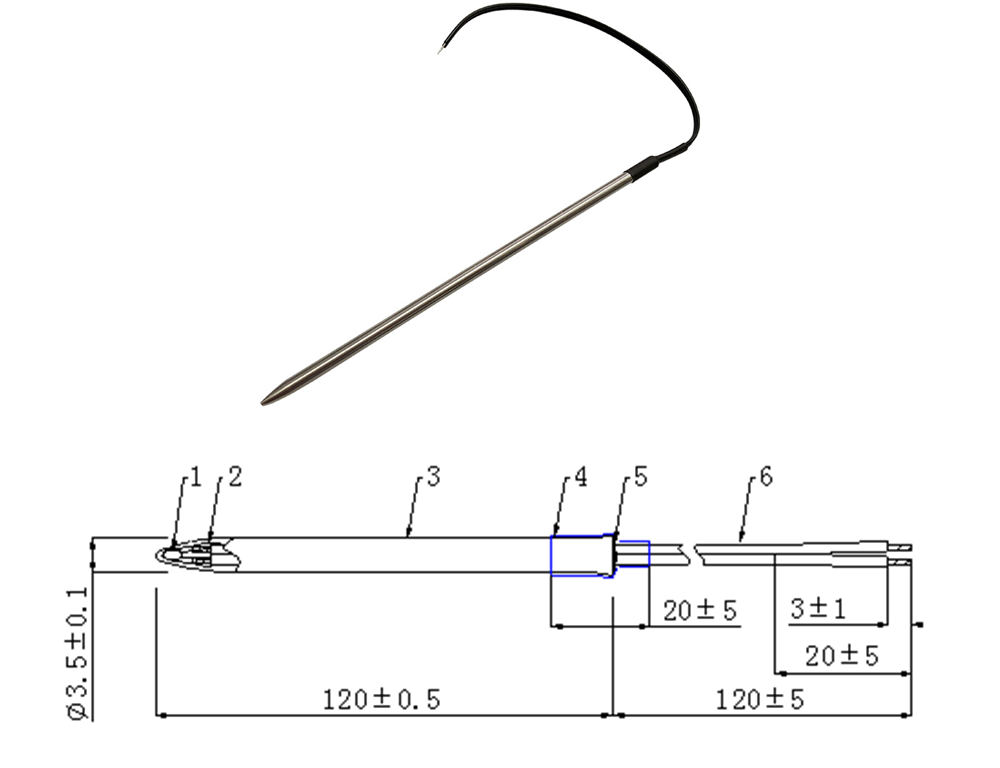

Product Drawing
- Product Model： TS103F25C3950FA-ML120A
- Wire : AWG26, AWG24 ,AWG 22 or Other
- Thermistor’s resistance value: R25=10kΩ±1%,B(25/85)=3950K±1%or different NTC R-T curve available
- Operating temperature range: -20℃～250℃
- All the materials comply with the RoHS requirement
| S | 502 |
|
F | 25C | 3990 | F | A | _ | M | L220 | A | |||||||
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ | ⑩ |
| ① | ② | ③ | ④ | ⑤ | ⑥ | |||||||||||
| Product Series Code | Resistance @25℃ | R25
Tolerance |
Test Temp. of Resistance | B-value | B-value Tolerance | |||||||||||
| TS | TS Series
Temperature sensor |
502 | 5KΩ | F | ±1% | 25C | 25℃ | 3990 | B=3990K | F | ±1% | |||||
| ⑦ | ⑧ | ⑨ | ⑩ | |||||||||
| Test Temp. of B-value | Housing Material | Length | Distinguishing Code | |||||||||
| A | 25/50℃ | M | Metal | L220 | 220mm | A | Internal code | |||||
| Part No. | R25℃
(KΩ) |
B(K) | Rated power
@25℃ (mW) |
Dissipation factor(δ)
(mW/℃) |
Thermal time
constant (s) |
| 202F3600A | 2 | 3600 | 10-20 | 2-4 | 3-10 |
| 502F3470A | 5 | 3470 | |||
| 103F3435B | 10 | 3435 | |||
| 303F3936A | 30 | 3936 | |||
| 104F3950A | 100 | 3950 |
