Product category / Smart Home NTC Temperature Sensor
NTC Probe Temperature Sensor for Water Heater
TS series NTC temperature sensor, can be supplied with various NTC thermistor to suit your application.The design is made from 304 stainless steel. They are widely used in smart home or other applications due to their high stability and wide operating range of -30°C/+200°C.
Product feature
Product characteristics
Product application
Product feature
- Stable performance
- Easy for installation
- High thermal conductivity
- Customized specification
- Operating temperature: -40℃ – 200℃
Product characteristics
- Rapid response time, high reliability, stability
- Rated power：10MW
- Thermal time constance≤16S
- Dissipation factor：6mW/C(in still air)
Product application
- Instantaneous water heaters
- Domestic electric showers
- Coffee machines
- Water Temperature or other applications etc.

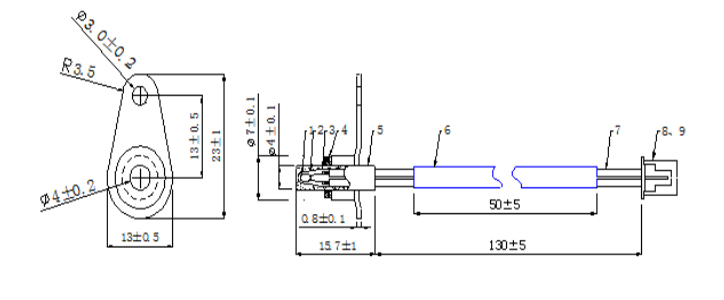

- Product Model： TS104F25C3950FA-ML130A
- Wire : UL3312 AWG24
- Wire length:50-2000mm
- Resistor resistance value: R25=100KΩ±1% B(25/50)=3950K±1%
- Operating temperature range:-30℃～200℃
- All the materials comply with the RoHS requirement
| TS | 104 |
|
F | 25C | 3950 | F | A | _ | M | L130 | A | |||||||
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ | ⑩ |
| ① | ② | ③ | ④ | ⑤ | ⑥ | |||||||||||
| Product Series Code | Resistance @25℃ | R25
Tolerance |
Test Temp. of Resistance | B-value | B-value Tolerance | |||||||||||
| TS | TS Series
Temperature sensor |
104 | 10×104Ω | F | ±1% | 25C | 25℃ | 3950 | B=3950K | F | ±1% | |||||
| ⑦ | ⑧ | ⑨ | ⑩ | |||||||||
| Test Temp. of B-value | Head Material | Length | Distinguishing Code | |||||||||
| A | 25/50℃ | M | Metal | L130 | 130mm | A | First | |||||
| Part No. | R25℃
(KΩ) |
B(K) | Rated power
@25℃ (mW) |
Dissipation factor(δ)
(mW/℃) |
Thermal time
constant (s) |
| 202F3600A | 2 | 3600 | 10-20 | 2-4 | 3-10 |
| 502F3470A | 5 | 3470 | |||
| 103F3435B | 10 | 3435 | |||
| 303F3936A | 30 | 3936 | |||
| 104F3950A | 100 | 3950 |
