Product category / Electric Vehicle NTC Temperature Sensor
High Reliable NTC Thermistor Sensor For Communication Equipment and Charging Station NTC Temperature Sensor
This NTC thermistor Sensor belongs to the TS series. It can be supplied with various NTC thermistors to suit your application. They are widely used in Communication Equipment, charging Stations, and other applications due to their high stability.
EXSENSE
- Tel +86 15813344362
- Email sak@exsense.net/ saa@exsense.net
Product feature
Product characteristics
Product application
Product specification
Product feature
-
High Precision and High Sensitivity
-
Good Thermal Cycling Resistance
-
Compact Size and Fast Response
-
Wide Temperature Measurement Range
Product characteristics
- Thermal Response Time: ≤20 seconds (in a water bath).
- Dissipation Factor: Approximately 5 mW/°C (in still air).
- Voltage Withstand Test: AC 1500V, 10 mA 3 seconds.
- Insulation Resistance: ≥100 MΩ DC 500V.
- Rated Power: ≤10 mW.
Product application
- Communication Equipment
- Automobiles
- Electric Vehicles
- Automotive Temperature Control Systems
- Charging Station
NTC thermistor sensor is widely used in Communication Equipment, Charging StationAutomobiles, Electric Vehicles,Automotive Temperature Control Systems, it is with small size, fast thermal time constant and easy to install/ replace. EXSENSE supply all kinds of high quality NTC thermistor sensor, NTC Temperature Sensor

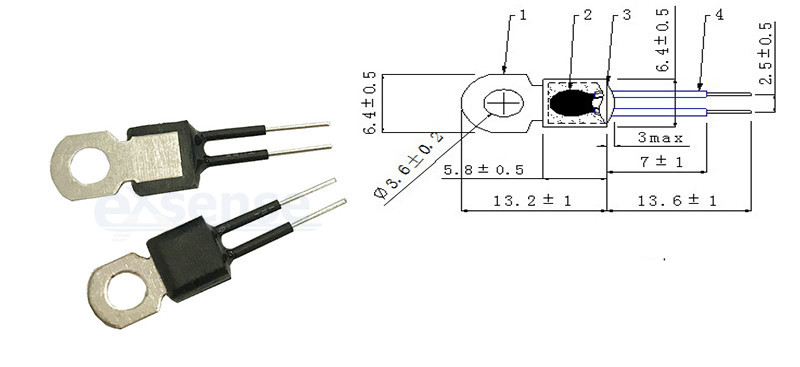

Product specification
- Product Model： TS502F25C3950FAEQ-NL13A
- Wire : AWG26, AWG24 ,AWG 22 or Other
- Thermistor’s resistance value: R25=5kΩ±1%,B(25/85)=3950K±1%or different NTC R-T curve available
- Operating temperature range: -40℃～125℃
- All the materials comply with the RoHS requirement
| S | 502 |
|
F | 25C | 3990 | F | A | _ | M | L220 | A | |||||||
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ | ⑩ |
| ① | ② | ③ | ④ | ⑤ | ⑥ | |||||||||||
| Product Series Code | Resistance @25℃ | R25
Tolerance |
Test Temp. of Resistance | B-value | B-value Tolerance | |||||||||||
| TS | TS Series
Temperature sensor |
502 | 5KΩ | F | ±1% | 25C | 25℃ | 3990 | B=3990K | F | ±1% | |||||
| ⑦ | ⑧ | ⑨ | ⑩ | |||||||||
| Test Temp. of B-value | Housing Material | Length | Distinguishing Code | |||||||||
| A | 25/50℃ | M | Metal | L220 | 220mm | A | Internal code | |||||
| Part No. | R25℃
(KΩ) |
B(K) | Rated power
@25℃ (mW) |
Dissipation factor(δ)
(mW/℃) |
Thermal time
constant (s) |
| 202F3600A | 2 | 3600 | 10-20 | 2-4 | 3-10 |
| 502F3470A | 5 | 3470 | |||
| 103F3435B | 10 | 3435 | |||
| 303F3936A | 30 | 3936 | |||
| 104F3950A | 100 | 3950 |
