High Accuracy Glass-sealed Radial Type NTC Thermistors
GT Series of NTC Thermistors are glass-sealed radial type thermistors with a water and oilproof design, featuring high temperature resistance and accuracy. For use in a wide variety of applications, including automotive, home application, high accuracy temperature detector etc.
Product feature
Product characteristics
Product application
Product Drawing
Product feature
- Small, light, firm structure, convenient automatic installation on PCB；
- Usable in high-temperature and high-moisture environments due to the glass wrapping；
- Rapid response time, high reliability, stability；
- The withstand temperature of Gold electrode GT thermistor is 500℃
Product characteristics
- Response Time： ≤1.5S
- Dissipation factor：About 1.2mW/℃
- Rated Power：≤60mW
- Operating temperature： -40 to 250°C
Product application
- Home application
- High accuracy temperature detector
- Office automation facility; industrial facility
- Various kinds of vehicle temperature sensing

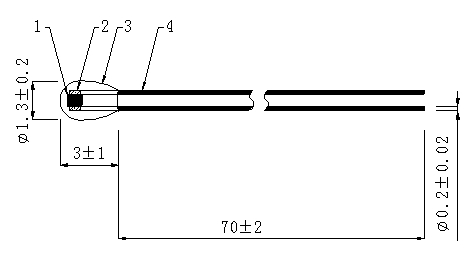

Product Drawing
- Product Model： GT103F3435B-R
- Probe Size:1.3mm/2.3mm
- Lead Wire:Dumet Wire]
- Resistor resistance value:R25=10kΩ±1% B(25/85)=3435K±1%
- All the material accord with the RoHS requirement
| GT | 103 | F | 3435 | B | _ | R | ||||
| ① | ② | ③ | ④ | ⑤ | ⑥ |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ||||||||||
| Product Series Code | Resistance |
Resistance tolerance |
Test Temp. of Resistance |
Test Temp. of B-value | outline | ||||||||||
| GT | GT Series of Thermistors | 103 | 10KΩ | F | 1% | 3435 | 3435K | B | 25/85 | R: radial type | |||||
| Part No. | R25℃
(KΩ) |
B(K) | Rated power
@25℃ (mW) |
Dissipation factor(δ)
(mW/℃) |
Thermal time
constant (s) |
| 103F3435B-R | 10 | 3435 | 35 or 50 | 0.75 or 1.3 | 1-5 |
| 103F3470A-R | 10 | 3470 | |||
| 473F3750A-R | 47 | 3750 | |||
| 503F3950A-R | 50 | 3950 | |||
| 104F4200A-R | 100 | 4200 |
