Product category / Electric Vehicle NTC Temperature Sensor
High Accuracy Epoxy-Coated Bead NTC Thermistors
BT series is epoxy-coated bead NTC thermistors . They are widely used in automotive and smart home applications due to their high stability and wide operating range of -50°C/+150°C.
- Tel +86 13679565096
- Email sak@exsense.net/ saa@exsense.net
Product feature
Product characteristics
Product application
Product feature
- Epoxy resin encapsulation
- Stable performance
- Small size,short response time,high sensitivity
- Good thermal cycle endurance
- Cost-effective
- Customized requirements are accepted
Product characteristics
- Response Time： ≤12S
- Dissipation factor：About 6mW/℃
- Rated Power：≤10mW
- Operating temperature：-40℃～125℃
Product application
- Home application
- High accuracy temperature detector
- Battery pack
- Various kinds of vehicle temperature sensing

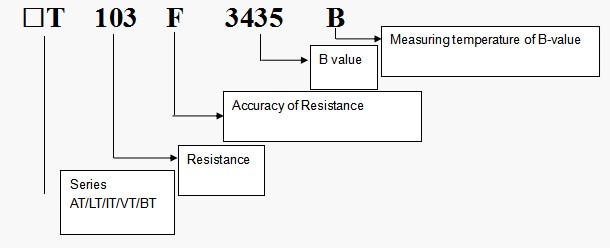

- Product Model：BT103F3435BIQ-30L47S

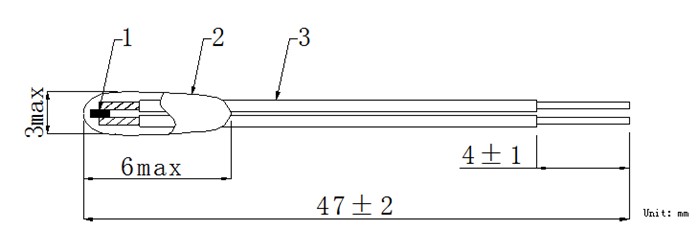

- Size:Epoxy-Coated Bead:Dia2.5-5mm
- Wire material:1332#30AWG
- Resistor resistance value:R25＝10KΩ±1% B（25/85）=3435K±1%
- Operating temperature range: -40 to 150°C
- All the material accord with the RoHS requirement
| Part No. | R25℃
(KΩ) |
B(K) | Rated power
@25℃ (mW) |
Dissipation factor(δ)
(mW/℃) |
Thermal time
constant (s) |
| 202F3600A | 2 | 3600 | 10-20 | 2-4 | 3-10 |
| 502F3470A | 5 | 3470 | |||
| 103F3435B | 10 | 3435 | |||
| 303F3936A | 30 | 3936 | |||
| 104F3950A | 100 | 3950 |
