Product category / NTC Temperature Sensor Probe
High Accuracy NTC Temperature Sensor For Electric Vehicle
TS series NTC temperature sensors are available with a broad range of lead-wire types and lengths, double-insulated options, connector types and a wide range of NTC thermistors to suit your application.They are widely used in New energy vehicles, smart home or other applications due to their high stability and wide operating range of -30°C-+200°C.
Product feature
Product characteristics
Product application
Product Drawing
Product feature
- Stable performance
- High thermal conductivity
- Customized specification
- Easy to install and operate the seal can be done according to the environment
Product characteristics
- Rapid response time, high reliability, stability
- Rated power:10MW
- Thermal time constance≤12S
- Dissipation factor:2.6mW/C(in still air)
Product application
- Automotive, e-vehicle batteries
- Rechargeable battery packs
- Temperature controllers
- Heat-sink monitoring
- Hot water appliances

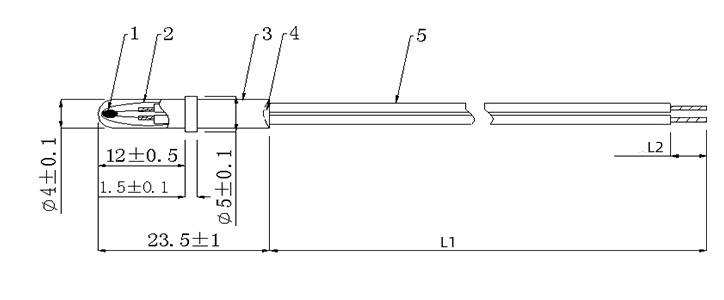

Product Drawing
- Product Model: TS104F25C4150FA-ML150A
- Wire : AWG26, AWG24 ,AWG 22 or Other
- Wire length:50-2000mm
- Resistor resistance value: R25ºC: 10K B25/85ºC: 3435,B25/85: 3977, 3950 or different NTC R-T curve available
- Operating temperature range:-30℃~200℃
- All the materials comply with the RoHS requirement
TS | 104 |
|
F | 25C | 3950 | F | A | _ | M | L130 | A | |||||||
① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ | ⑩ |
① | ② | ③ | ④ | ⑤ | ⑥ | |||||||||||
Product Series Code | Resistance @25℃ | R25
Tolerance |
Test Temp. of Resistance | B-value | B-value Tolerance | |||||||||||
TS | TS Series
Temperature sensor |
104 | 10×104Ω | F | ±1% | 25C | 25℃ | 3950 | B=3950K | F | ±1% |
⑦ | ⑧ | ⑨ | ⑩ | |||||||||
Test Temp. of B-value | Head Material | Length | Distinguishing Code | |||||||||
A | 25/50℃ | M | Metal | L130 | 130mm | A | First |
Part No. | R25℃
(KΩ) |
B(K) | Rated power
@25℃ (mW) |
Dissipation factor(δ)
(mW/℃) |
Thermal time
constant (s) |
202F3600A | 2 | 3600 | 10-20 | 2-4 | 3-10 |
502F3470A | 5 | 3470 | |||
103F3435B | 10 | 3435 | |||
303F3936A | 30 | 3936 | |||
104F3950A | 100 | 3950 |
